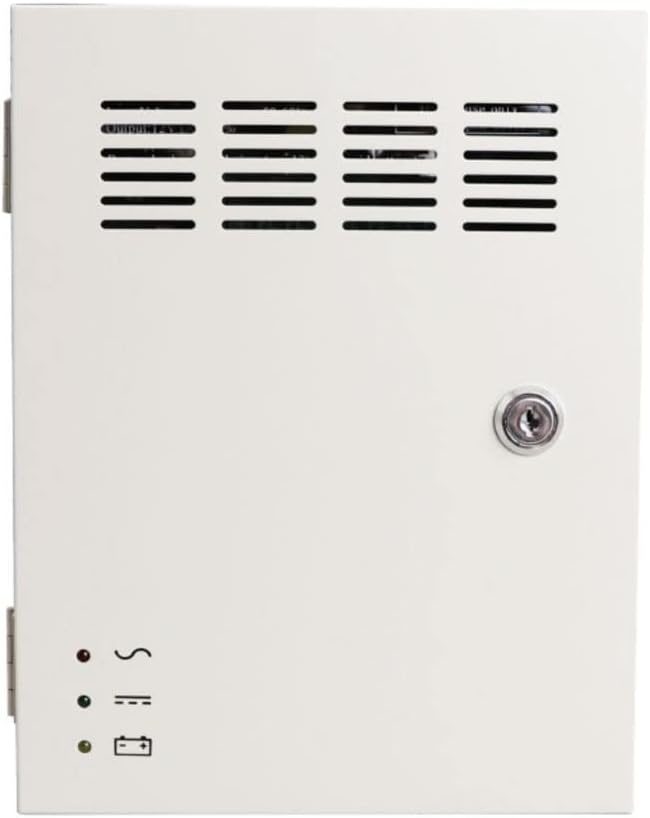

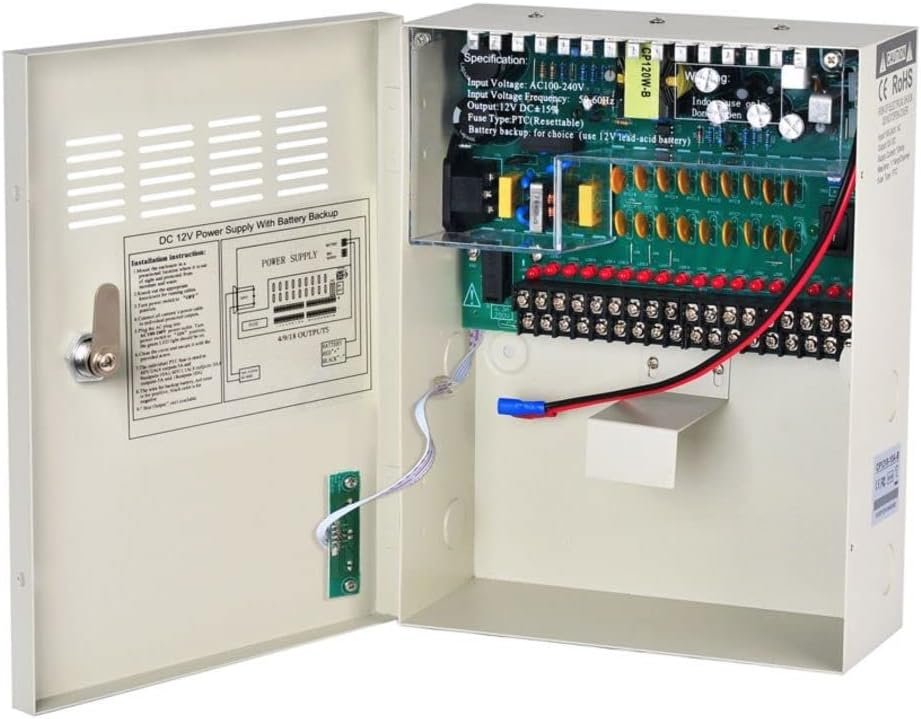

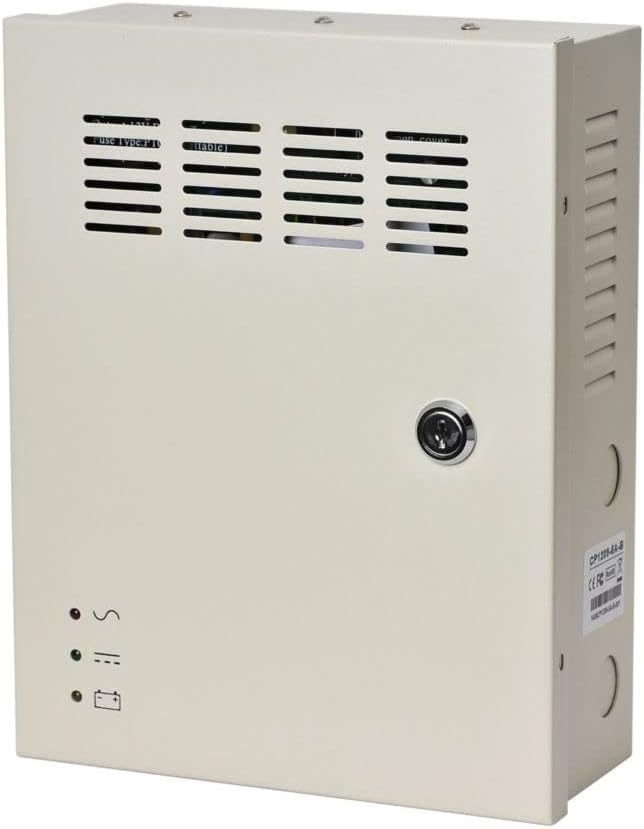

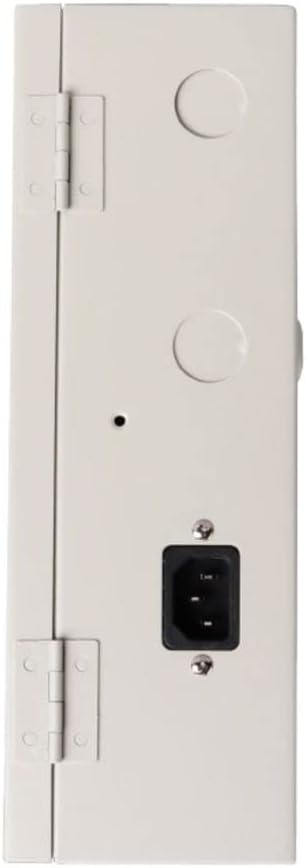

18 Channel 12V 10Amp DC Metal Boxed Cabinet Regulated UPS Power Supply Unit R610028
18 Channel 12V 10Amp DC Metal Boxed Cabinet Regulated UPS Power Supply Unit R610028
UPS CCTV Power Supply Suitable for CCTV Camera, PTZ, IR Illuminators, Video Process, Access Control, etc. Battery Backup: Use 12V Lead-acid battery (Not included)
General Protection: Individual PTC (Positive Temperature Coefficient) Fuse and LED indicator on each output, when problem occurs, only affect the individual output, other outputs still working;
Short Circuit Protection: When short circuit occurs, Individual PTC Fuse will cut off the circuit and when breakdown removed, PTC fuse will automatically be restoring circuit;
High voltage protection: When high voltage occurs, the surge protection will be hit through to protect the connected device;
Over Current protection: When over current occurs, the power supply will automatically switch to self-protection status, when it is removed, then it will return to normal state;
Features:
Uninterrupted Power Supply supports battery backup(Battery not included), Suitable for CCTV Camera, PTZ, IR Illuminators, Video Process, Access Control, etc. Battery Backup: Use 12V Lead-acid battery (Not included)
General protection: each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
Application ： CCTV Camera, PTZ, IR Illuminator, Video Processor， Access Control , etc.
Packing Dimension ： 26.5 x 21.5 x 9.4CM
Net Weight ： 2.3Kg
Specification:
Input Voltage ： AC 100-240V
Input Voltage Frequency ： 50/60Hz
Output Voltage ： DC 12V +/-5%
Total Output Current ： 10A
Total Outputs ：18
Fuse Type ： PTC (Resetable)
Fuse Rating ： 1.1A
