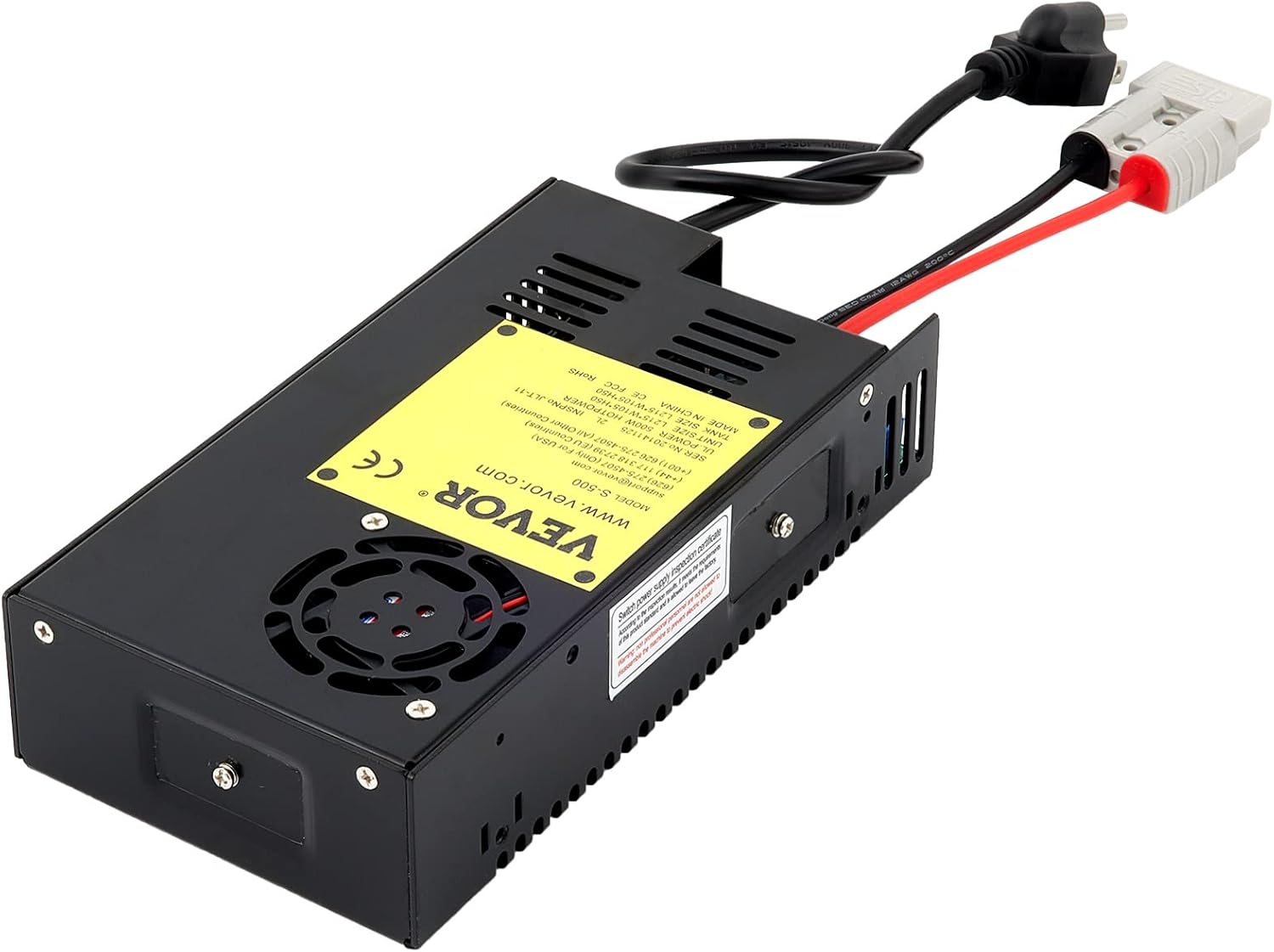

RV Power Converter Charger 500W 30 Amp W83745
RV Power Converter Charger 500W 30 Amp W83745
RV Converter Charger: Converts 110 Volt AC to 14.8 Volt DC. Output DC Voltage: 14.8V; Output Rating Current: 30A; Output Rating Power: 500W; Input Voltage: 85V - 120V AC; Input Frequency: 47 - 63 Hz; Efficiency: ≥ 83%; Power Factor: ≥ 0.65; Insulation Resistance: 10M ohms; Item Dimension(L x W x H): 8.46 x 4.53 x 1.97 in / 215 x 115 x 50 mm.
Three-Stage Charging System: RV power converter charger features an intelligent way to charge and maintain your RV battery, and it will not boil the battery. 3-stage charging system built-in handles every charging need for the RV while dramatically extending the battery's life for long last usage.

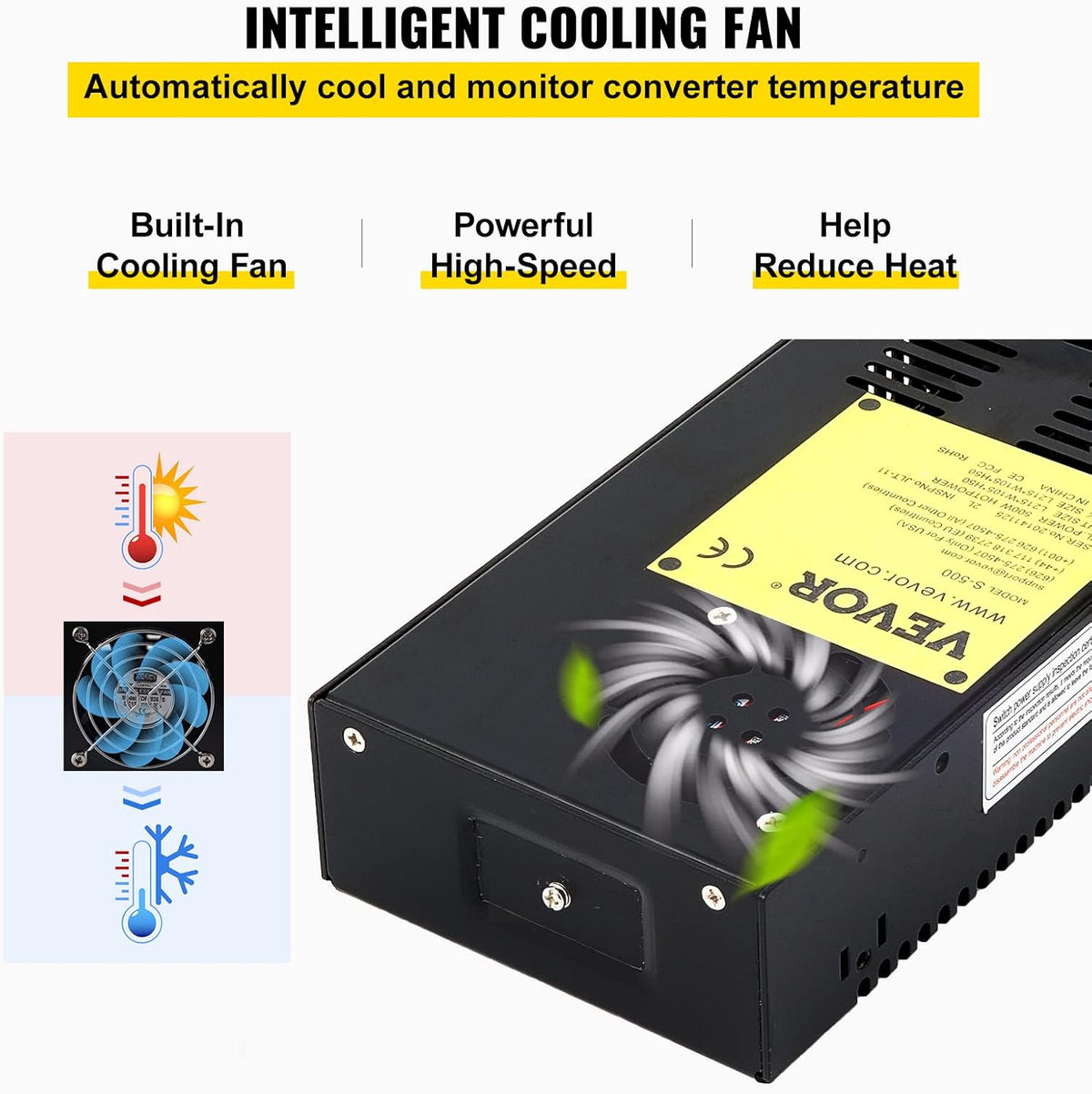

High-Speed Cooling Fan: Variable speed intelligent cooling fan automatically monitors RV battery charger converter temperature and activates fan at speed required. Quiet operation is ensured as the cooling fan only runs when required by the electric load. Operate the charger in well-ventilated areas only.
Fully Security Protections: RV smart converter applies multiple security protections to ensure the converter charger is fully protected during use. Such as Reverse Polarity / Short Circuit / Over Temperature / Over Load Protection. Reverse battery protection avoids damage from improper battery lead connection.
Easy Installation & Wide Application: With no need to re-wire, installation is only 10 minutes! RV inverter converter charger will fully charge and maintain any battery type while providing very clean DC power. Capable of charging your RV battery while also supplying power for your DC electronics.
30A RV Power Converter Charger
Converts 110V to 12V & Intelligent Cooling Fan & For RV Battery
VEVOR RV converter offers stable power with a three-stage charging system to maintain system voltage for use in a wide variety of applications, such as charging RV batteries or powering 12V equipment. If a reliable and durable power source is what you want, then look no further!
key Features
Converts 110V AC to 12V DC
The RV smart converter charger converts 110V AC power into usable 14.8V DC power, thus charging a battery or power 12V equipment.
Three-Stage Mode
Automatic three-stage battery charging maintains your battery's life with three nominal voltage output modes.
Multiple Protection Designs
There are six main protection measures for the RV power converter: short circuit protection, over-temperature protection, reverse polarity protection, etc.
Silent Fan
Temperature controlled cooling fan mounted internally to effectively rotate at a different speed according to power load and temperature.

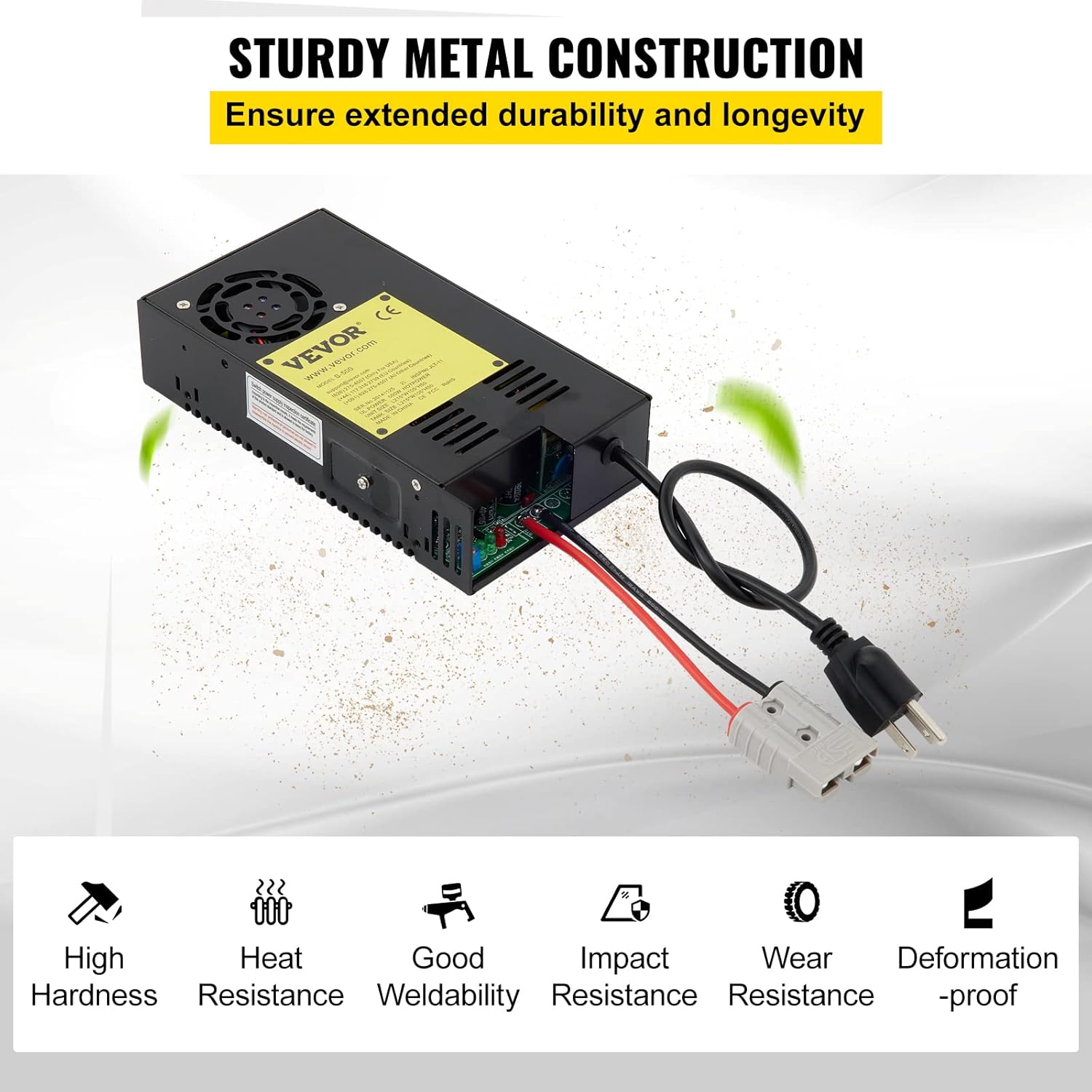

Premium Metal Material
Camper power converter made of high-quality metal material, with high strength and hardness, good plasticity and toughness, is not easy to deform.

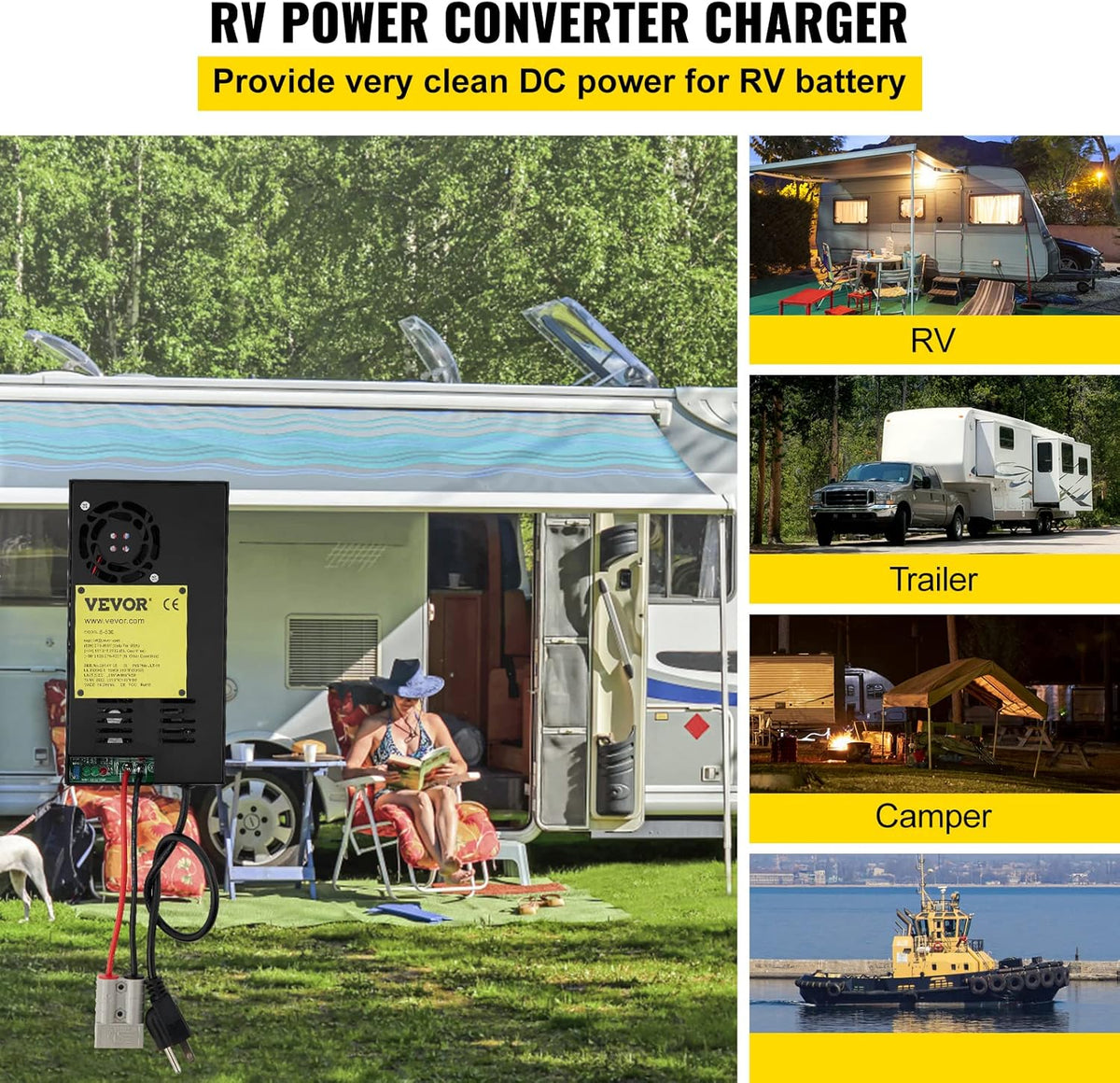

Extensive Use
Camper converter provides stable power to maintain system voltage for use in any applications where battery charging or 12V power is needed.
Specifications
Model: S-500-14.8
Output DC Voltage: 14.8V
Output Rating Current: 30A
Output Rating Power: 500W
Input Voltage: 85V - 120V AC
Input Frequency: 47 - 63 Hz
Input Current/Voltage: ＜7.5A / 115V AC
Efficiency: ≥ 83%
Power Factor: ≥ 0.65
Ripple and Noise: ≤ 240mVp- p
Hold Time: ≥10mS, 77℉ / 25℃
Charging Indication: LED
Operation Temperature: 14 to 122℉ / -10 to 50℃
Operation Humidity: 20%-90%RH Non-Condensing

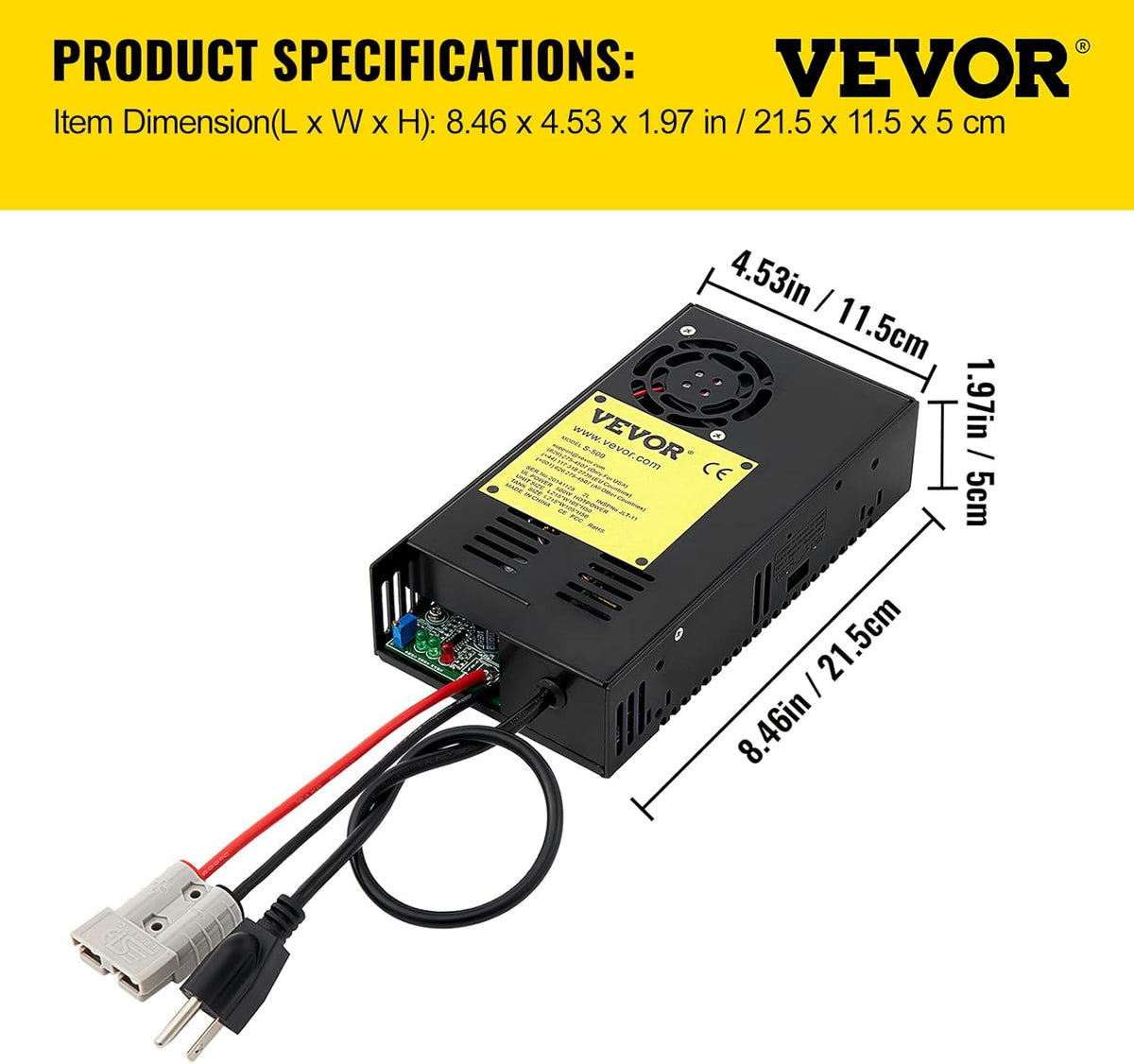

Item Dimension(L x W x H): 8.46 x 4.53 x 1.97 in / 215 x 115 x 50 mm

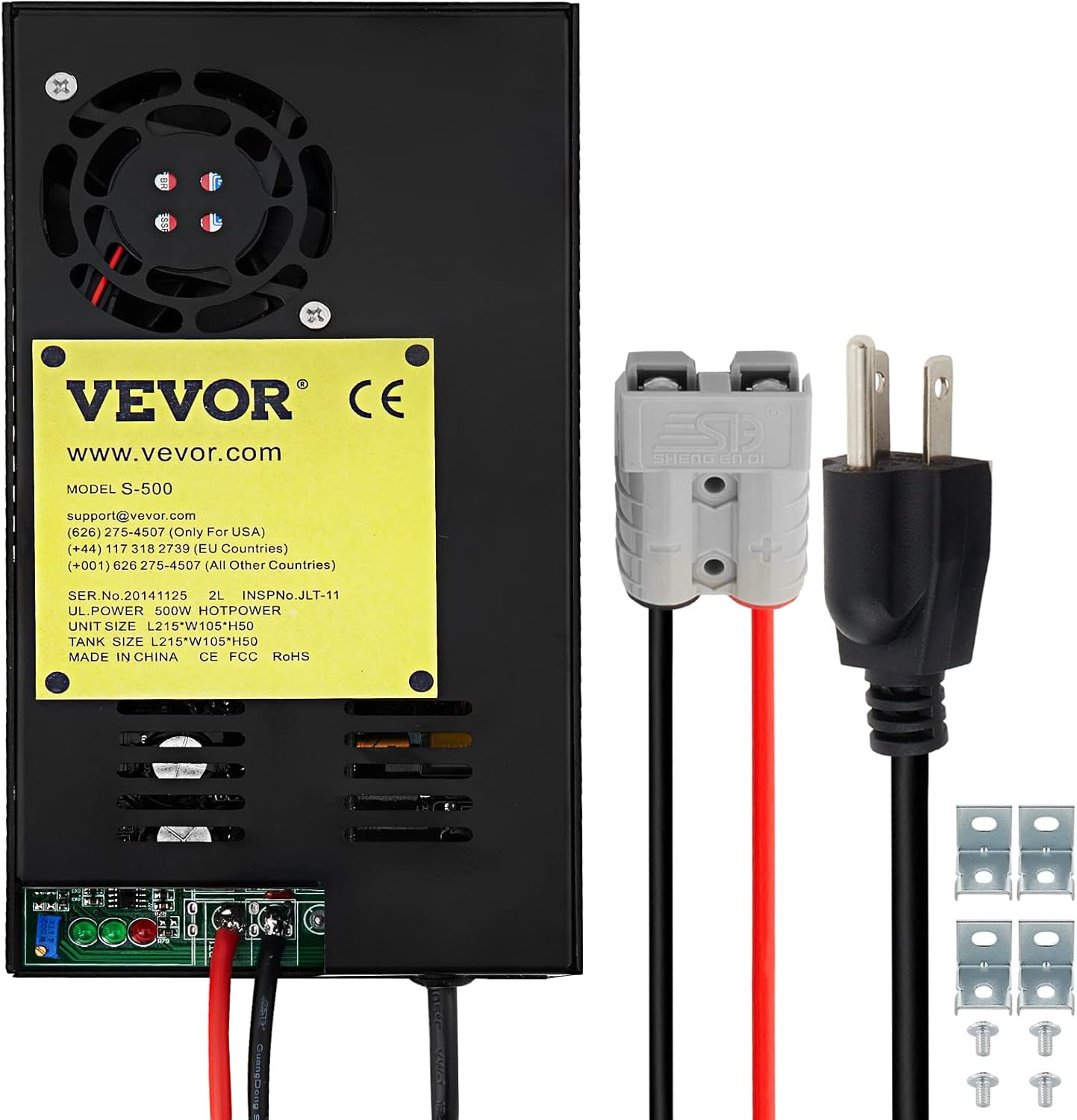

Package Content
1 x RV Converter Charger
| 30A RV Converter Charger | 35A RV Converter Charger | 45A RV Converter Charger | 55A RV Converter Charger | 60A RV Converter Charger | 75A RV Converter Charger | |
|---|---|---|---|---|---|---|
| Output DC Voltage | 14.8V | 14.8V | 14.8V | 14.8V | 14.8V | 14.8V |
| Output Rating Current | 30A | 35A | 45A | 55A | 60A | 75A |
| Output Rating Power | 500W | 600W | 800W | 1000W | 1100W | 1200W |
| Input Voltage | 85V - 120V AC | 85V - 120V AC | 85V - 120V AC | 85V - 120V AC | 85V - 120V AC | 85V - 120V AC |
| Input Frequency | 47 - 63 Hz | 47 - 63 Hz | 47 - 63 Hz | 47 - 63 Hz | 47 - 63 Hz | 47 - 63 Hz |
| Input Current/Voltage | ＜7.5A / 115V AC | ＜8.5A / 115V AC | ＜12.5A / 115V AC | ＜15.5A / 115V AC | ＜15.5A / 115V AC | ＜16.5A / 115V AC |
